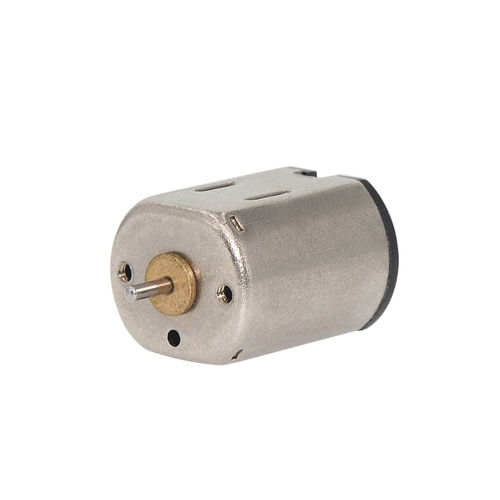

DC motor C1215Fsynchronousiron-coresmall
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Configuration
- iron-core, small
- Applications
- for the electronics industry
- Power
1.18 W
(0.002 hp)- Intensity
40 mA, 100 mA, 110 mA
- Torque
0.0007 Nm, 0.0011 Nm, 0.0018 Nm
(0.0005 ft.lb, 0.0008 ft.lb, 0.0013 ft.lb)- Rotational speed
Min.: 9,600 rpm
(60,318.58 rad.min-1)Max.: 25,000 rpm
(157,079.63 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
C1215F
12mm N20 DC Motor
Diameter：12mm Length ：15mm Voltage：1.5V 、3V、3.5V Max. Output Power ：1.18W Speed：9600-25000rpm
Applications
Security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
