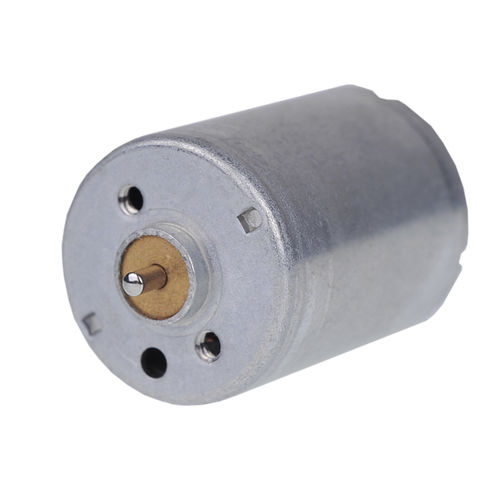

DC motor C1723Rsynchronousiron-coresmall
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Configuration
- iron-core, small
- Applications
- for the electronics industry
- Power
1.85 W
(0.003 hp)- Intensity
45 mA, 55 mA, 95 mA
- Torque
1.013 Nm, 1.185 Nm, 3.102 Nm
(0.7472 ft.lb, 0.874 ft.lb, 2.2879 ft.lb)- Rotational speed
Max.: 19,400 rpm
(121,893.79 rad.min-1)Min.: 12,000 rpm
(75,398.22 rad.min-1)- Diameter
17 mm
(0.67 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
C1723R
1723 7.4v DC Core Motor
Diameter：17mm Length ：23mm Voltage：6V 、7.4V Max. Output Power ：1.85W Speed：12000-19400rpm
Applications
Security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
