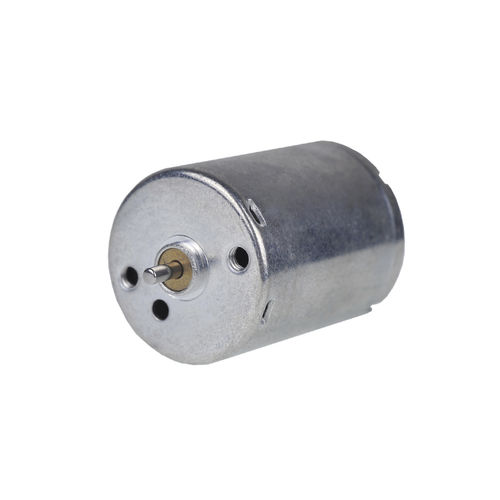

DC motor C2430Rsynchronous24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 24 V, 12 V
- Configuration
- iron-core, small
- Applications
- for the electronics industry
- Power
3.91 W
(0.005 hp)- Intensity
4 mA, 35 mA, 130 mA
- Torque
0.0065 Nm, 0.0161 Nm, 0.0235 Nm
(0.0048 ft.lb, 0.0119 ft.lb, 0.0173 ft.lb)- Rotational speed
Max.: 6,350 rpm
(39,898.23 rad.min-1)Min.: 2,500 rpm
(15,707.96 rad.min-1)- Diameter
24 mm
(0.94 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
C2430R
24mm 370 DC Core Motor
Diameter：24mm Length ：30mm Voltage：3.7V 、12V、24V Max. Output Power ：3.91W Speed：2500-6350rpm
Applications
Security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
