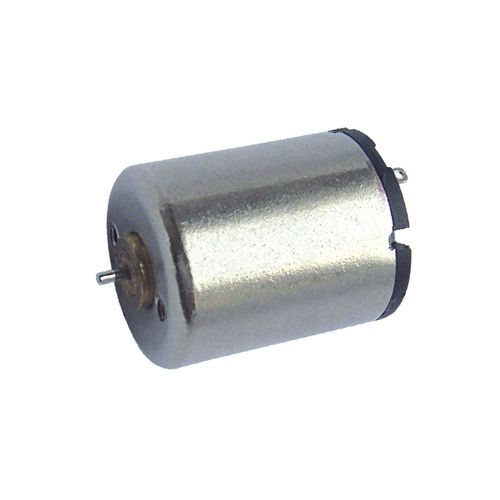

Coreless motor L1620N5M
DCsynchronous5 V

Coreless motor - L1620N5M - Constar Motion Co., LTD - DC / synchronous / 5 V
Coreless motor - L1620N5M - Constar Motion Co., LTD - DC / synchronous / 5 V
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
5 V
Configuration
coreless, compact, micro
Applications
for household appliances
Power

1.4 W, 1.5 W, 1.6 W
(0.002 hp, 0.002 hp, 0.002 hp)

Intensity

Max.: 1,350 mA

Min.: 25 mA

Torque

Max.: 0.0078 Nm
(0.0058 ft.lb)

Min.: 0.001 Nm
(0.0007 ft.lb)

Rotational speed

Max.: 9,500 rpm
(59,690.26 rad.min-1)

Min.: 6,970 rpm
(43,793.8 rad.min-1)

Diameter

16 mm
(0.63 in)

Description

L1620N5M 16mm Micro DC Coreless Motor Diameter:16mm Length : 20mm Voltage:5V Max. Output Power :1.5W Speed:8000-9500rpm Applications Mini UAV, remote control hobby products, small household appliances, etc. Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
