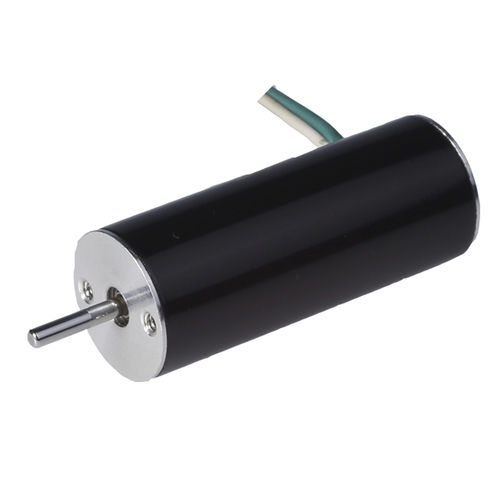

Brushless motor B1230N2BDC3 V9 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 3 V, 9 V, 12 V
- Configuration
- slotless
- Applications
- industrial, for medical equipment
- Other characteristics
- integrated-drive, with built-in encoder
- Power
3.7 W, 5.9 W, 7.8 W
(0.005 hp, 0.008 hp, 0.011 hp)- Intensity
Max.: 1.7 A
Min.: 0.05 A
- Torque
0.0027 Nm, 0.0038 Nm
(0.002 ft.lb, 0.0028 ft.lb)- Rotational speed
6,800 rpm, 12,200 rpm, 14,100 rpm
(42,725.66 rad.min-1, 76,654.86 rad.min-1, 88,592.91 rad.min-1)Max.: 18,000 rpm
(113,097.34 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
12 mm
(0.47 in)
Description
B1230N2B
12V Brushless DC Motor
Diameter：12mm Length：30mm Voltage：3.7v 9v 12V Max. output power ：3.7W Speed：11500rpm
Applications
Medical Equipment、 RC Helicopter、Industrial Automation
Options
Lead wires length、Shaft length、Special coils、Gearheads、Bearing type、
Encoder、Driver
Unit Price
Price upon request
