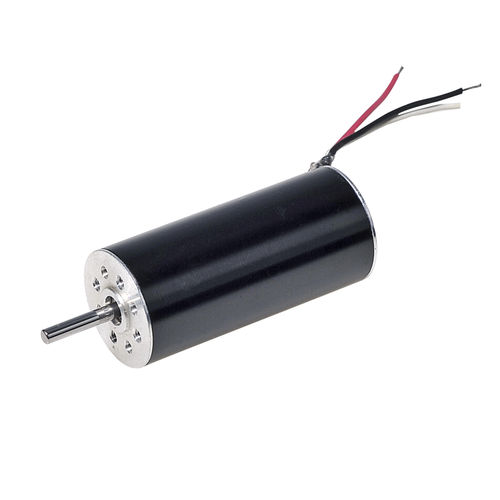

Brushless motor B2040N2BDC12 V9 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 12 V, 9 V
- Configuration
- slotless
- Applications
- industrial, for medical equipment
- Other characteristics
- integrated-drive, with built-in encoder
- Power
7.2 W, 8.7 W, 31 W
(0.01 hp, 0.012 hp, 0.042 hp)- Intensity
Max.: 10.9 A
Min.: 0.2 A
- Torque
Max.: 0.0796 Nm
(0.0587 ft.lb)Min.: 0.0076 Nm
(0.0056 ft.lb)- Rotational speed
Max.: 15,000 rpm
(94,247.78 rad.min-1)Min.: 4,300 rpm
(27,017.7 rad.min-1)- Diameter
20 mm
(0.79 in)
Description
B2040N2B
20mm Electric Brushless DC Motor
Diameter：20mm Length：40mm Voltage：9V 12V Max. output power ：31W Speed：15000rpm
Applications
Medical Equipment、Industrial Automation
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
