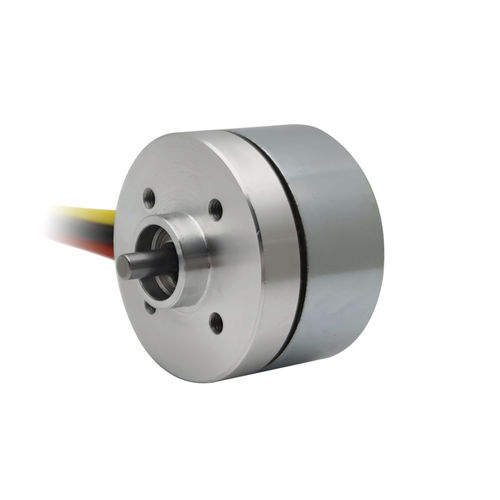

External rotor motor BO4831NH2BDCbrushless24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 36 V, 18 V
- Configuration
- external rotor
- Applications
- for drone
- Other characteristics
- integrated-drive, with built-in encoder
- Power
1,609 W, 1,788 W
(2.188 hp, 2.431 hp)- Intensity
12 A, 17.6 A, 23.5 A
- Torque
0.447 Nm, 0.449 Nm, 0.457 Nm
(0.3297 ft.lb, 0.3312 ft.lb, 0.3371 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 10,160 rpm
(63,837.16 rad.min-1)7,600 rpm, 7,700 rpm
(47,752.21 rad.min-1, 48,380.53 rad.min-1)- Diameter
48 mm
(1.89 in)
Description
BO4831NH2B
Big Outrunner Brushless DC Motor
Diameter：48mm Lengh ：31mm Voltage：18V、24V、36V Max. output power ：1609W Speed：10160rpm
Applications
UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
