DC motor BO6133N2Bbrushless24 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 48 V, 36 V
- Configuration
- external rotor
- Other characteristics
- integrated-drive, with built-in encoder
- Power
730 W, 744 W, 749 W
(0.993 hp, 1.012 hp, 1.018 hp)- Intensity
5.5 A, 7.3 A, 11 A
- Torque
0.553 Nm, 0.558 Nm
(0.4079 ft.lb, 0.4116 ft.lb)- Rotational speed
3,700 rpm
(23,247.79 rad.min-1)- Diameter
61 mm
(2.4 in)
Description

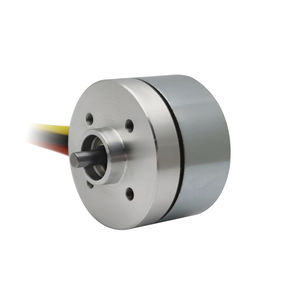

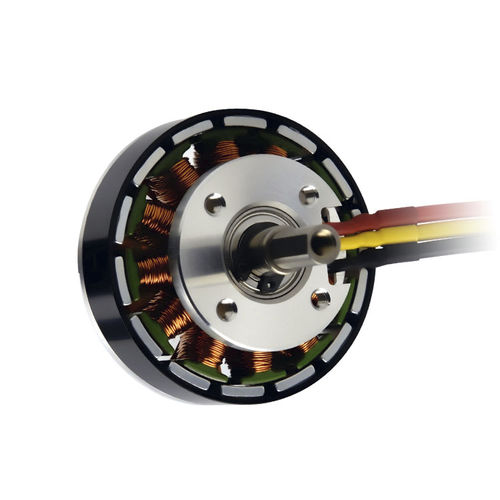

BO6133N2B
61mm Outer Rotor 48v Brushless DC Motor
Diameter：61mm Lengh ：33mm Voltage：48V、36V、24V Max. output power ：730W Speed：5000rpm
Applications
UAV, aeromodelling, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver
Unit Price
Price upon request
