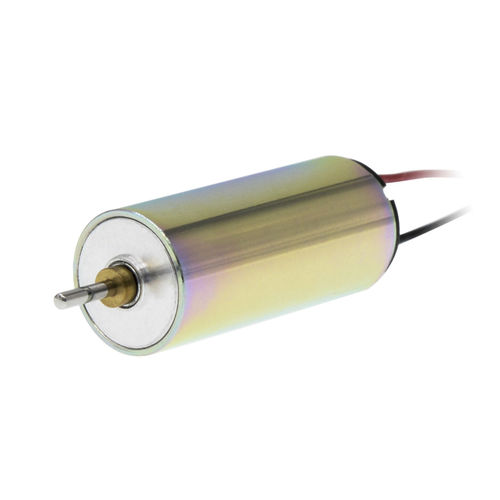

Coreless motor 1331N5MDCbrushed12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 12 V
- Configuration
- coreless, micro
- Applications
- industrial, for medical equipment, for robotics, for automotive applications
- Other characteristics
- precision
- Power
0.49 W, 1.12 W, 2.23 W
(0.001 hp, 0.002 hp, 0.003 hp)- Intensity
0.1 A, 0.17 A, 0.24 A
- Torque
0.001 Nm, 0.002 Nm, 0.003 Nm
(0.0007 ft.lb, 0.0015 ft.lb, 0.0022 ft.lb)- Rotational speed
3,080 rpm, 4,590 rpm, 6,040 rpm
(19,352.21 rad.min-1, 28,839.82 rad.min-1, 37,950.44 rad.min-1)- Diameter
13 mm
(0.51 in)
Description
1331N5M
13mm Micro Brush Coreless DC Motor
Diameter：13mm Length ：31mm Voltage：4.5V 、9V、12V Max. Output Power ：0.49W Speed：3900-8700rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
