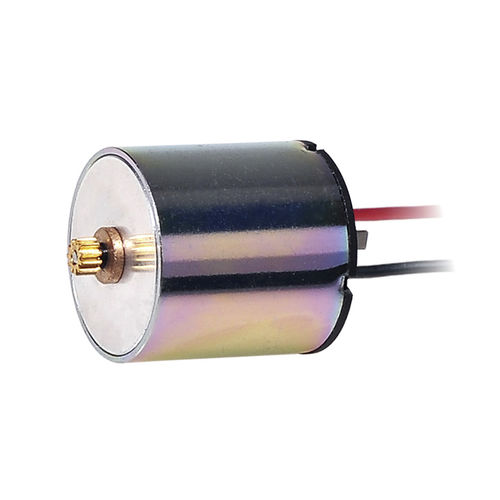

Coreless motor 1515N5MDCsynchronous12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 12 V, 18 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for automotive applications
- Other characteristics
- precision
- Power
2.48 W, 4.15 W, 5.14 W
(0.003 hp, 0.006 hp, 0.007 hp)- Intensity
0.15 A, 0.38 A, 0.84 A
- Torque
0.001 Nm, 0.0015 Nm, 0.002 Nm
(0.0007 ft.lb, 0.0011 ft.lb, 0.0015 ft.lb)- Rotational speed
16,890 rpm, 18,540 rpm, 18,860 rpm
(106,123 rad.min-1, 116,490.26 rad.min-1, 118,500.87 rad.min-1)- Diameter
15 mm
(0.59 in)
Description
1515N5M
15mm 7.4V DC Coreless Motor
Diameter：15mm Length ：15mm Voltage：7.4V 、12V、18V Max. Output Power ：5.14W Speed：22000-25500rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
