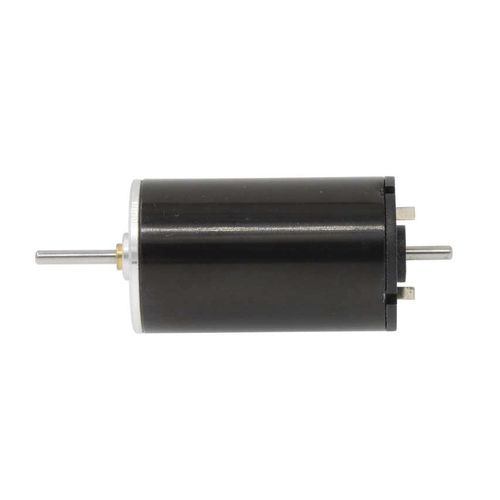

DC motor 1627N5M（1）synchronous12 Vcoreless
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 12 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for automotive applications
- Other characteristics
- precision, double
- Power
3.3 W, 4 W, 4.9 W
(0.004 hp, 0.005 hp, 0.007 hp)- Intensity
0.36 A, 0.77 A, 0.85 A
- Torque
0.003 Nm, 0.0033 Nm, 0.004 Nm
(0.0022 ft.lb, 0.0024 ft.lb, 0.003 ft.lb)- Rotational speed
7,640 rpm, 8,540 rpm, 8,810 rpm
(48,003.54 rad.min-1, 53,658.4 rad.min-1, 55,354.86 rad.min-1)- Diameter
16 mm
(0.63 in)
Description
1627N5M（1）
16mm 6v Dc Motor Double Schaft
Diameter：16mm Lengh ：27mm Voltage：4.5V 、6V、12V Max. Output Power ：3.3W Speed：10100rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
