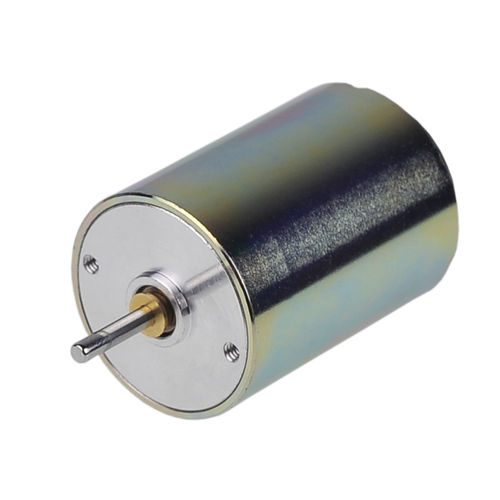

Coreless motor 2232N5M2BDCsynchronous12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 12 V, 6 V, 9 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for the automotive industry
- Other characteristics
- precision
- Power
4.4 W, 6.9 W, 8.3 W
(0.006 hp, 0.009 hp, 0.011 hp)- Intensity
0.72 A, 0.73 A, 0.8 A
- Torque
0.005 Nm, 0.007 Nm, 0.008 Nm
(0.0037 ft.lb, 0.0052 ft.lb, 0.0059 ft.lb)- Rotational speed
6,170 rpm, 7,100 rpm, 7,460 rpm
(38,767.25 rad.min-1, 44,610.62 rad.min-1, 46,872.56 rad.min-1)- Diameter
22 mm
(0.87 in)
Description
2232N5M2B
2232 Precious Coreless DC Motor
Diameter：22mm Length ：32mm Voltage：6V 、9V、12V Max. Output Power ：4.4W Speed：8100rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
