Coreless motor 2554N9C2BDCbrushed24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for the automotive industry
- Other characteristics
- precision
- Power
18.6 W, 46.1 W, 56.9 W
(0.025 hp, 0.063 hp, 0.077 hp)- Intensity
1.2 A, 1.21 A, 1.9 A
- Torque
0.028 Nm, 0.0324 Nm, 0.042 Nm
(0.0207 ft.lb, 0.0239 ft.lb, 0.031 ft.lb)- Rotational speed
3,560 rpm, 6,960 rpm, 8,180 rpm
(22,368.14 rad.min-1, 43,730.97 rad.min-1, 51,396.46 rad.min-1)- Diameter
25 mm
(0.98 in)
Description

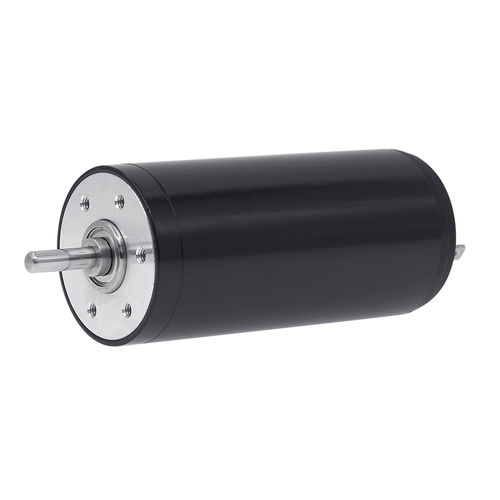

2554N9C2B
2554 24volt carbon brush dc motor
Diameter：25mm Length ：54mm Voltage：12V、24V Max. Output Power ：18.6W Speed：5100rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
