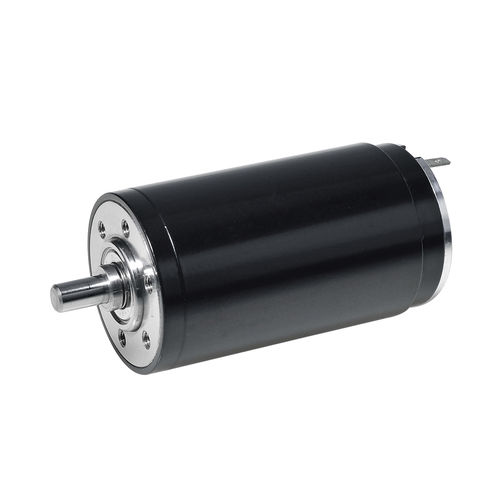

Coreless motor 3257N9C2BDCsynchronous24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Voltage
- 24 V, 12 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for the automotive industry
- Other characteristics
- precision, with built-in encoder
- Power
61 W, 77 W, 81 W
(0.083 hp, 0.105 hp, 0.11 hp)- Intensity
1.13 A, 1.19 A, 2.32 A
- Torque
0.0318 Nm, 0.0385 Nm, 0.0455 Nm
(0.0235 ft.lb, 0.0284 ft.lb, 0.0336 ft.lb)- Rotational speed
5,000 rpm, 5,730 rpm, 6,810 rpm
(31,415.93 rad.min-1, 36,002.65 rad.min-1, 42,788.49 rad.min-1)- Diameter
32 mm
(1.26 in)
Description
3257N9C2B
32mm 12v、24v Coreless Dc Motor
Diameter：32mm Length ：57mm Voltage：12V、24V Max. Output Power ：81W Speed：5440rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder
Unit Price
Price upon request
