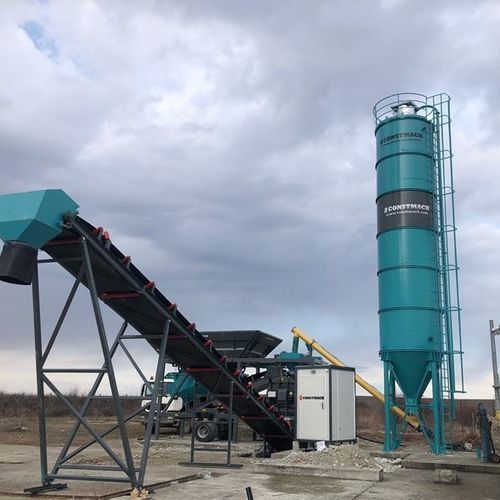

Cone-bottom silo CS-50

weldedboltedcement

CONSTMACH 50 tonnes capacity cement silo CS-50 has a wide range of usage area from concrete plants to block machines and also ground study applications. CS-50 can be manufactured as bolted or welded type. 2 sets of bolted version of CS-50 can be shipped within 1 pcs 40 ft OT container or a truck. CONSTMACH CS-50 cement silo is equipped with maintenance platform between the legs, cement filling pipe, inner and outer manholes, safety guards, roof flanges for air filter and pressure safety valve, a roof gate for inner manhole and also a cone flange for butter fly valve. CONSTMACH CS-50 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging. In case of manufacturing the bolted type version, parts of cement silos are manufactured by sensitive laser cutting and drilling methods. In the jobsite, parts of cement silos can be assembled easily and sensitively. 1 layer of anticorrosive paint and 2 layers of FINAL COAT EPOXY PAINT with total paint thickness of 140 Microns are applied on our cement silos. All static load and mechanical calculations of CS-50 is done by using ANSYS Workbench CAE software and the silo is capable to be stocked 50 tonnes of cement or similar material without any deformation in all conditions. You can see the general layout, transport information and photos of Cement Silos - CS-50 by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.
