Impact crusher CSI Series
stationaryhigh-capacitysecondary

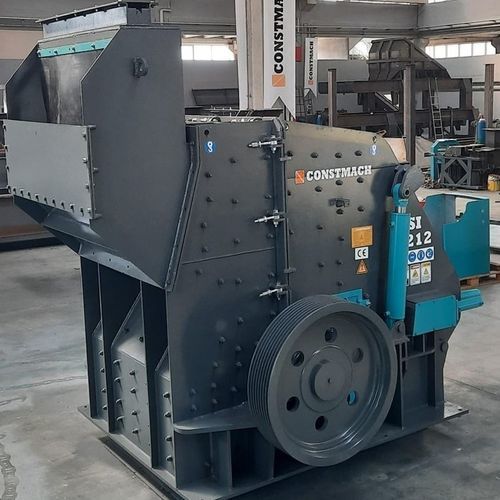

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 2

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 3

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 4

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 5

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 6

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 7

Impact crusher - CSI Series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / secondary - image - 8

Add to favorites

Compare this product

Go to the CONSTMACH Concrete Plants & Crushers website for more information

Characteristics

Technology

impact

Mobility

stationary

Other characteristics

high-capacity, secondary

Capacity

Min.: 120 t/h
(73.5 lb/s)

Max.: 350 t/h
(214.3 lb/s)

Motor power

Min.: 160 kW
(217.54 hp)

Max.: 250 kW
(339.91 hp)

Weight

Min.: 17,000 kg
(37,478.58 lb)

Max.: 26,000 kg
(57,320.19 lb)

Description

CONSTMACH Secondary Impact Crushers offer high capacity, cubic shape and reduced wear costs. Besides having the greatest durability, our ease of maintenance means less total downtime. Thanks to their three step pendulums, CONSTMACH Secondary Impact Crushers can make primary, secondary and tertiary crushing operations. Features of CONSTMACH SECONDARY IMPACT CRUSHERS: High strength, open disc, stress-relieved rotor Large spherical roller bearings High chrome or manganes alloy breaker bars Rear doors allow access to the breaker plate liner bolts Two hydraulic cylinders for opening the body High reduction ratio Large discharge opening Hydraulic adjustment system allows breaker plate openingchanges while crushing
