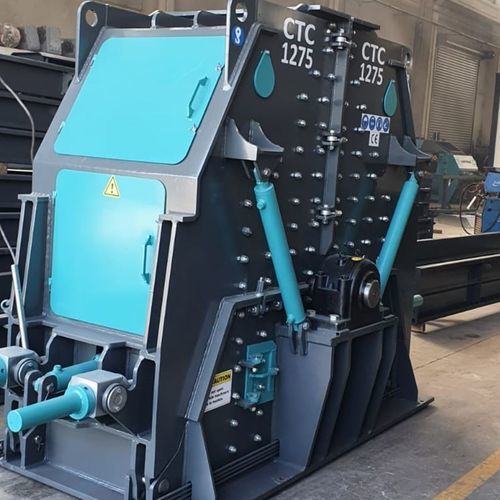

Impact crusher CTC series
stationaryhigh-capacitysand production

Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 2
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 3
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 4
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 5
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 6
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 7
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 8
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 9
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 10
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 11
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 12
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 13
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 14
Impact crusher - CTC series - CONSTMACH Concrete Plants & Crushers - stationary / high-capacity / sand production - image - 15
Add to favorites
Compare this product

Go to the CONSTMACH Concrete Plants & Crushers website for more information

Characteristics

Technology
impact
Mobility
stationary
Other characteristics
high-capacity, sand production, tertiary
Capacity

Max.: 250 t/h
(153.1 lb/s)

Min.: 60 t/h
(36.7 lb/s)

Motor power

Max.: 250 kW
(339.91 hp)

Min.: 110 kW
(149.56 hp)

Weight

Max.: 18,500 kg
(40,785.52 lb)

Min.: 9,500 kg
(20,943.91 lb)

Description

CONSTMACH Tertiary Impact Crusher is ideally suited to crush medium-hard, non-abrasive materials down to a cubical, well graded product size of 0 ֠5 mm (60% passing) in a single pass. Due to its added control over the upper product sizes and high reduction ratios, it can efficiently operate in closed circuit on smaller product fractions. Hydraulic opening mechanism helps the users to do the maintenance and settings operations easily. Features of CONSTMACH TERTIARY IMPACT CRUSHERS: High reduction ratio Cubical product with high crush count Selective crushing by speed and breaker plateadjustment Interchangeable wear parts Hydraulic adjustment and opening mechanism
