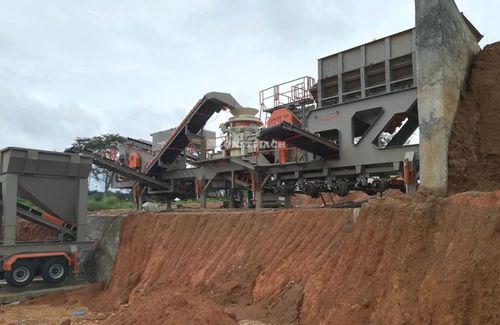

Cone crushing and screening plant JC-1

mobilefinehigh-capacity

CONSTMACH JC-1 Mobile Crushing plant is a perfect solution for crushing hardest rocks with very high abrasiveness and Silica (SiO2) ratio such as granite, basalt, gabbro etc. JC-1 is the outcome of sophisticated design and engineering, usage of top quality materials and components with long-lasting and excellent craftsmanship. JC-1 Mobile Crushing & Screening Plant includes double chassis and it is combination of: Feeding Hopper with vibrating feederCJC-60 Primary Jaw CrusherBy-pass conveyor (for extraction of soil)Feeding Conveyor between jaw crusher and hopper of cone crusherWheeled mobile chassis with hydraulic legsAutomation System with PLC and remote controller 2nd Chassis Feeding Hopper of Cone CrusherFeeding conveyor between hopper and cone crusherCone Crusher, METSO HP 100 or equivalentVibrating Screen with 3 decksFeedback Conveyor from vibrating screen to the hopper of cone crusherFold-up type Stockpile ConveyorsWheeled mobile chassis with hydraulic legsAutomation System with PLC and remote controllerDust Removing SystemDiesel Electric Generator Set (Optional Application) JC-1 production capacity changes between 60 to 80 tph according to hardness grade of the material to be crushed. Maximum feeding size is 610 x 380 mm. The cone crusher is Metso HP 100 or equivalent model. It is possible to get 3 or 4 different fractions at the same time. In case of needing for increasing the fine material ratio and/or having more cubical product, the plant is equipped with our V-70 mobile sand making plant which includes a VSI crusher. In that case the overall configuration is called as JCV-1.
