Jaw crusher JC-2

mobilehigh-capacityprimary

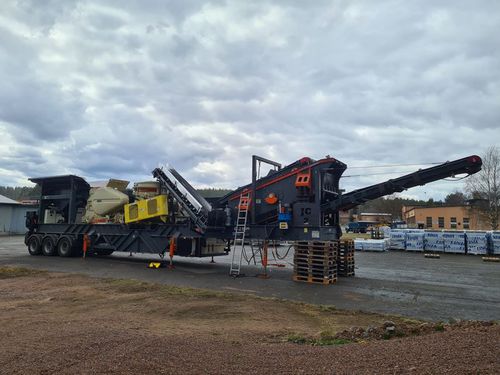

CONSTMACH JC-2 Mobile Crushing plant is a perfect solution for crushing very hard rocks with high abrasiveness and Silica (SiO2) ratio such as granite, basalt, gabbro etc. JC-2 is the outcome of sophisticated design and engineering, usage of top quality materials and components with long-lasting and excellent craftsmanship. JC-2 Mobile Crushing Plant has single or double chassis options as per our clients’ preferences and it is combination of: 1st Chassis • Feeding Hopper with vibrating feeder • CJC-90 Primary Jaw Crusher • By-pass conveyor (for extraction of soil) • Feeding Conveyor between jaw crusher and hopper of cone crusher • Wheeled mobile chassis with hydraulic legs • Automation System with PLC and remote controller • Dust Removing System 2nd Chassis • Feeding Hopper of Cone Crusher • Cone Crusher, METSO HP 200 or equivalent • Vibrating Screen with 3 decks • Feedback Conveyor from vibrating screen to cone crusher • Fold-up type Stockpile Conveyors • Wheeled mobile chassis with hydraulic legs • Automation System with PLC and remote controller • Dust Removing System • Diesel Electric Generator Set (Optional Application) JC-2 production capacity changes between 120 to 150 tph according to hardness grade of the material to be crushed. Maximum feeding size is 850 x 600 mm. The cone crusher is Metso HP 200 or equivalent model. It is possible to get 3 or 4 different fractions at the same time. In case of needing for increasing the fine material ratio and/or having more cubical product, the plant is equipped with our V-80 mobile sand making plant which includes a VSI crusher.
