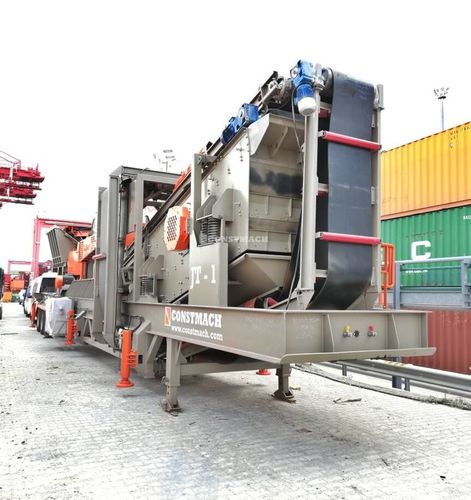

Jaw crushing and screening plant JT-1

mobileprimaryhigh-capacity

CONSTMACH JS-1 Mobile Crushing and Screening plant is used for processing of materials with middle hardness grade such as limestone, riverstone, dolomite etc. JS-1 is the result of sophisticated engineering and advanced design, high quality components with long-lasting and excellent craftsmanship. JS-1 Mobile Crushing Plant is combination of: 1st Chassis: Feeding Hopper with Vibrating FeederCJC-60 Primary Jaw CrusherBy-pass Conveyor (for extraction of soilFeeding ConveyorWheeled Mobile Chassis with Hydraulic LegsPower & Control Panel 2nd Chassis: CSI 1210 Secondary Impact CrusherVibrating Screen with 3 DecksFeedback Conveyor from Vibrating Screen to the Hopper of Secondary Impact CrusherFold-up Type Stockpile ConveyorsWheeled Mobile Chassis with Hydraulic LegsPower & Control PanelDust Removing SystemDiesel Electric Generator Set (Optional Application) JS-1 Production capacity changes between 60 to 80 tonnes per hour according to hardness level of stones to be crushed. Maximum feeding size is 600 x 350 mm. Thanks to special design of the secondary impact crusher in the system, produced final fractions have excellent cubical shape which is a desired result especially for concrete production. It is possible to get 3 or 4 different fractions at the same time. In case of need, it is possible to adapt an electric generator to chassis of the plant. JS-1 is a user-friendly combination which promises easy mount/assemble features to its operators. The plant can be put into use in very short time.
