Vertical-shaft impact crusher V-90

mobilesand productionfine

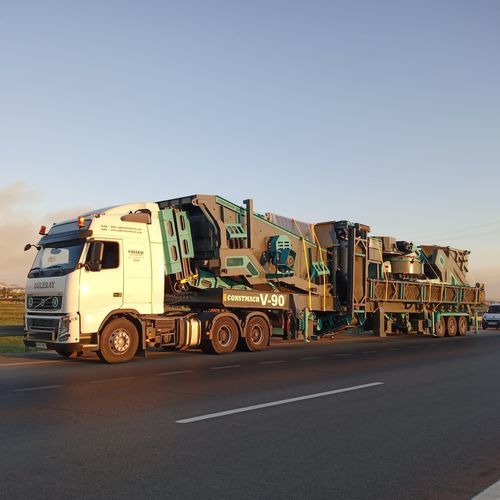

CONSTMACH V-90 Mobile Crushing and Screening plant is also called as MOBILE SAND MAKING MACHINE is a perfect solution for production of especially fine material that is also known as sand which has between 0-5 mm granul size with excellent cubic shape. V-90 is the outcome of sophisticated engineering and advanced design, high level quality components with long-lasting and awesome workmanship. In addition to the materials which is provided by precrushing with primary and secondary crushing operations, it is also possible to feed the system directly with natural stone that does not exceed 45 mm. Any kind of material with different hardness grades such as limestone, basalt, granite, dolomite, gabro can be crushed by V-90 with satisfying performance. V-90 Production capacity changes between 200 to 250 tph regarding toughness level of aggregates to be crushed. In addition to sand (fine materail) it is also possible to produce other 3 different final fractions simultaneously. V-90 Mobile Sand Making Machine is combination of: Feeding Hopper with vibrating feederVSI 900 CR Closed Rotor Vertical Shaft Impact CrusherFeeding Conveyor between hopper and VSI CrusherConveyor between VSI crusher and vibrating screenVibrating Screen with 3 decksFeedback Conveyor for oversize materialStock ConveyorsWheeled mobile chassis with hydraulic legsAutomation System with PLC and remote controllerDust Removing SystemDiesel Electric Generator Set (Optional Application) In case of need, it is possible to adapt an electric generator to chassis of the plant.
