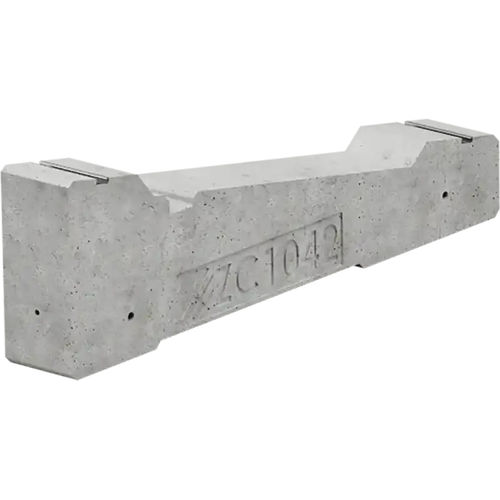

Flat roof PV mounting system ZC1042

for portrait installationconcrete

The east-west system with fiber-reinforced concrete support ZC1042, allows installing a single row of photovoltaic modules arranged horizontally with a 10° inclination. The snap-in assembly of the KMTU2950 universal terminal clamp and KMCU2950 central clamp takes place on the short or long side of the modules. The use of accessories such as reinforcement bars (bracing), plates (brackets kit bracing) and additional ballasts, increase the stability to wind load by optimizing the incidence of structural weight.
