Flat roof PV mounting system TILT

aluminium

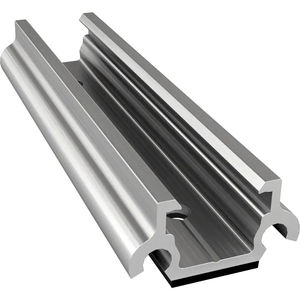

The TILT system is suitable for the installation of panels with variable inclination on flat and curved corrugated sheets. The system includes a lower component of base to be fixed to the sheet and an upper component to be fixed to the panel. The lower component includes a support base equipped with two lateral fins that are fixed to the trapezoidal sheet metal by means of rivets or self-tapping screws. The upper component includes a stop surface for mounting the photovoltaic module and a circular housing for hinging the lower component.
