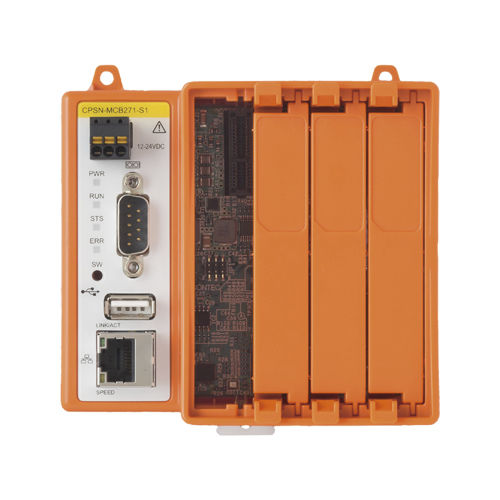

Remote I/O module CPSN-MCB271-S1-041

digitalModbus RTUModbus TCP

This product is a remote I/O model CPU unit that has RS-232C *1 and LAN interfaces in addition to four expansion slots. If necessary, you can freely combine this product with CONPROSYS nano series I/O modules. In addition, this product can be controlled from a PC running Windows or Linux and supports Modbus TCP Slave and Modbus RTU Slave *1. *1: This is available with CPSN-MCB271-S1-041 model only I/O module expansion With this product, you can freely add I/O modules to match the necessary functions from among the varied collection of CONPROSYS nano series I/O modules. Max. 921,600bps RS-232C Serial Communication (only CPSN-MCB271-S1-041) The Product has one RS-232C-standard serial port. Baud rates from 110 to 921,600 bps can be set. Adaptable to a wide range of temperature between -20 and +60°C The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments. Compatible with Modbus TCP Slave and Modbus RTU Slave Modbus is a communication protocol widely adopted in the industrial sector. Controlling and collecting data from higher-level devices with Modbus Master function can be conducted. *1: This is available with CPSN-MCB271-S1-041 model only Applicable with Windows driver software The product supplies UDP/IP-based original protocol (F&eIT) and applications can be created with Windows driver software in the Win32 API function format (DLL). n top of that, you can check whether software and hardware are operating properly with the diagnostic program.
