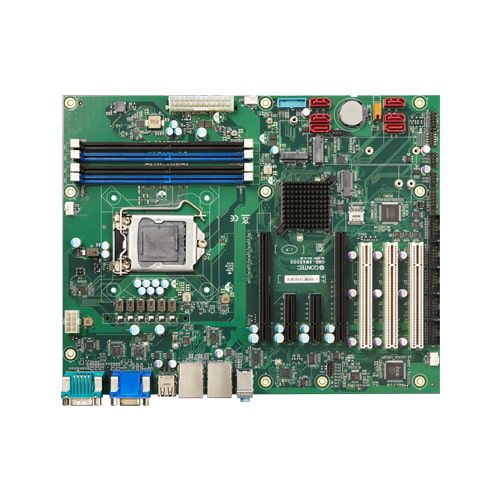

ATX motherboard GMB-AW48000

Intel® Xeon® W-1270TEIntel® Xeon® W-1290TEIntel® Xeon® W-1250TE

GMB-AW48000 supports 10th Gen Intel® Xeon W-1200E series processors, includes support Microsoft Windows 10 IoT Enterprise 2019, as well as up to 128GB DDR4-2933 U-DIMM with ECC/non-ECC available to detect and repair errors that cause data corruption and system crashes. Moreover, software RAID (Redundant Array of Independence Disks) function is supported to ensure data security and backup requirements. The Product up to 10 cores and 20 threads for improved throughput, LGA 1200 socket scalability, embedded use conditions, and long-term product availability, 10th Gen Intel Core processors provide a solid foundation for IoT platforms. High-end Server Grade Performance and Protection GMB-AW48000 design based on Comet Lake-S platform features up to 10 cores, hyper threading on all models, single-core turbo boost up to 4.8 GHz. DDR4-2933 memory supports for i3, i5, i7, i9, and 10th Gen Intel® Xeon® W-1200E Series processors include error-correcting code (ECC) capabilities. Media & Display Features for Premium 4K Content Support Support for three simultaneous, independent displays Edge devices with a 10th Gen Intel Core processor inside have three external device driver interface (DDI) ports, include 1 x HDMI, 1 x DP, 1 x VGA, support 4K up to 4096x2304@60Hz with Intel® UHD Graphics 630. Software RAID available GMB-AW48000 build-in 6 x SATAIII connector support RAID 0, 1 ,5,10 level function. When connecting 2 to 4 HDD or SSD storage device allows customers to expand the capacity and do storage devices maintenance easily. Moreover, the RAID function can guarantee data security and fulfill backup requirement.
