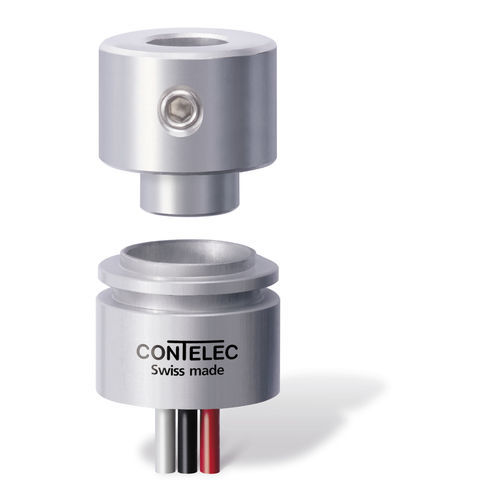

Incremental rotary encoder Vert-X 13Eabsolutemagneticsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- incremental, absolute
- Technology
- magnetic
- Construction
- single-turn, non-contact
- Output signal
- analog
- Supply voltage
- 5 VDC
- Protection level
- IP68
- Other characteristics
- compact, high-accuracy, redundant
- Housing diameter
13 mm
(0.51 in)- Process temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Rotary encoder, magnetic, external actuator
- Very compact dimensions
- Non-contacting measuring method
- Infinite mechanical life
- High accuracy of measurement
- Use in very cramped installation conditions
