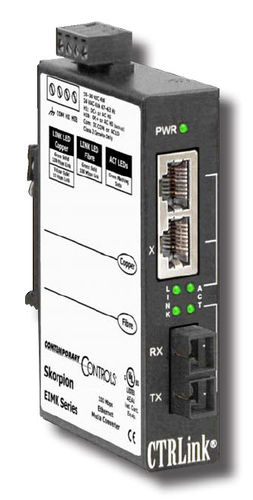

Fiber optics converter 4 port, 100 Mbps | EIMK series

Ethernet

The EIMK Skorpion Media Converter series makes the conversion of an Ethernet copper segment to fiber simple. By operating fullduplex at 100 Mbps provides the highest possible performance on 100 Mbps links. The EIMK is a true media converter and not just a two-port Ethernet switch. Therefore performance is enhanced by not introducing the store-and-forward data latency inherent in a switch. Both multimode and single-mode models are available with ST or SC connectors. Fiber distances of up to 15 km are possible with the single-mode model  up to 2 km with the multimode models. On the copper side, both MDI and MDIX ports are available to compliment either an end station port or a switch port. Crossover functionality is accomplished on the fiber side by simply reversing fiber connections.
