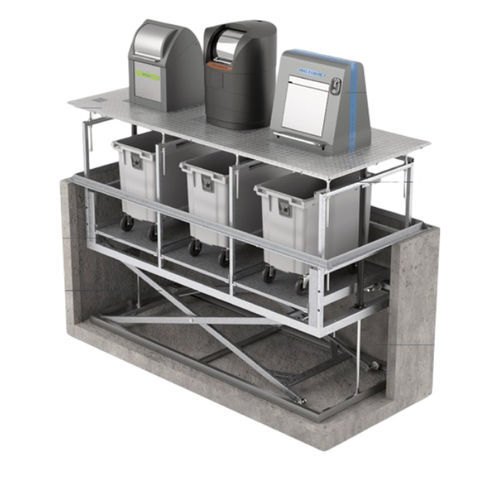

Stainless steel waste container SCT series

HDPEin-groundfor urban waste

Column Millenium, Europa and Cité models manufactured from high-density polyethylene. EVO and Austral models manufactured from galvanised or stainless steel. Available with apertures for glass, paper and plastics, or pedal-operated single/ dual drum with capacities ranging from 30 to 120 litres. Meets the most stringent accessibility standards. Platform Manufactured from an S275-JR tubular steel structure and 3 mm sheet steel. Fully hot-dip galvanised to meet the ISO 1461 standard. Platform finished with a 3/5 mm hot-dip galvanised anti-slip checker plate or tray for paving (45 mm) . Adjustable for gradients of up to 10%. lifting structure Manufactured from an S275- JR tubular steel structure and 3 mm sheet steel. Lifting mechanism based on two hydraulic cylinders manufactured with an ST-52 sleeve and F-114 Ø 40 mm chrome valve rod, with a total lifting capacity of 3,900 kg. Fitted with parachute safety valves and lock bolts for maintenance work. Prefabricated concrete Monoblock enclosure manufactured using a self- compacting mould and HA-35 (C40/50) concrete. Classified as XS3 under the EN 206 standard.
