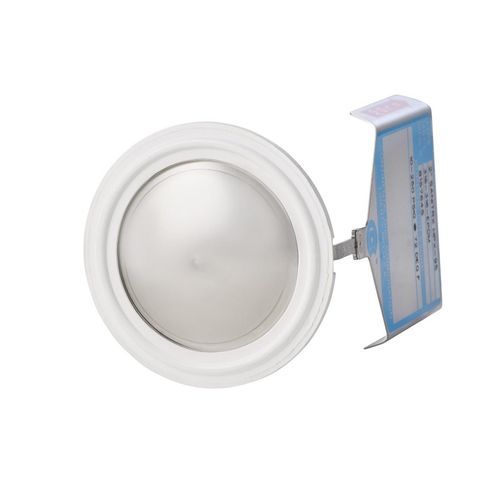

Inverted rupture disc SANITRX HPX®

reverse actingstainless steelsanitary

The pharmaceutical, biotech, food and beverage industries rely on the high-precision SANITRX HPX rupture disc family – a sanitary rupture disc with the perfect combination of industry-leading performance with ASME BPE, USP Class VI and 3A compliance. The SANITRX HPX rupture disc is a semicircular, scored, reverse-acting rupture disc, capable of withstanding cycles from full vacuum to 95% of the stamped rating. It is available in 90 or 95% maximum recommended operating ratio. The versatility of the SANITRX HPX The SANITRX HPX sanitary rupture disc can be used in a wide range of sanitary and hygienic applications throughout pharmaceutical, biotech, food and beverage facilities. They fit between industry-standard sanitary ferrules, NA-CONNECT flanges or SANITRX HPX fittings. To optimize service life and rupture disc performance, we manufacture and test each SANITRX HPX rupture disc at your specified compressible or incompressible relief conditions. Fluoropolymer coating is available for corrosion protection on process or vent sides. Electropolished surface finishes are also available. ASME Code Section VIII, Division 1 compliance available when requested. ASME BPE Standard The SANITRX HPX rupture disc family is in compliance with the essential criteria of the ASME BPE standard as follows: -CIP and SIP cleanable -Withstands temperatures of 130°C where steam sterilization is required -Internal surfaces and sanitary fittings meet SF1 (20 Ra microinch) standard surface-finish requirements -USP Class VI-certified gaskets are fully traceable, include no animal derivatives and meet other ASME BPE standards
