Electric motor hydraulic power unit

stationarywith piston pump

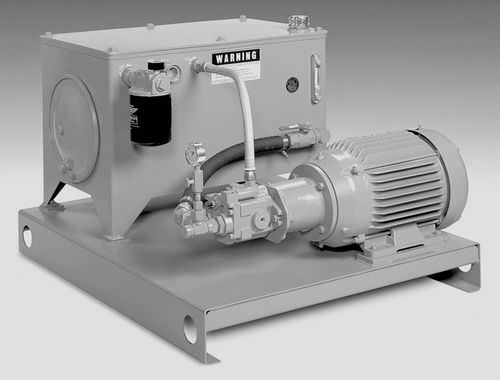

L-shape power unit white background L shape power unit; white background L-shape Power Unit White BackgroundL Shape Power Unit; White Background Applications: Fast metal cut off machinery Steel mill production Steel and pipe handling equipment Metal forming Pressing and clamping Custom machines Description L-shape style power units have the pump motors mounted on a base along the side of the reservoir to create a flooded or positive head inlet line. Tank sizes from 10 gallons to 200 gallons. All combinations of Continental pumps are available; Vane 4-75 GPM up to 3000 PSI, Piston pumps 6-29 GPM up to 4000 PSI, gear pumps .5 GPM to 12 GPM up to 3600 PSI. Plus many accessories configurable to produce a complete system. Multiple ways to service the reservoir. Through the bolt on top plate or side clean out cover. Key Features: System standards reference NFPA Stationary Industrial machinery. L-shape reservoir design to provide flooded inlets for long system life. Easily customized to meet any customer specification. L-base can be made to accommodate back-up and or redundant pump motors: Sizes are 10 to 200 gallons Continental wide variety of hydraulic pumps: Sizes are 1 to 75 GPM up to 4000 PSI Continental wide variety of hydraulic valving: Sizes are D03, D05, D07, D08, on off and proportional Assemblers are CFPS over 20 years’ experience each Choose our offered IO link ready sensors for predictive maintenance. Pressure, temperature, and level SAE ports, flange ports, hydraulic tubing and hose with 37Degree tube fittings. Robust and quiet Motor controls and panels
