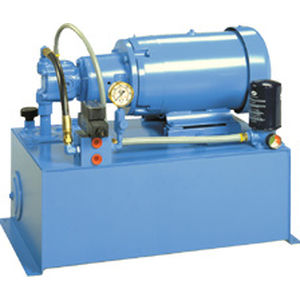

Electrically-powered hydraulic power unit

compactsmallwith gear pump

Low Profile style units are power units with pump motors mounted horizontally on the top of the reservoir. Similar to JIC unit, however, we removed the legs to fit in tight spaces. To make it even more compact we integrated the filter in the top plate, so the standard components are with in the frame of the reservoir. Tanks from 10 gallons to 30 gallons. PVR6 line of pump 4-10GPM up to 2000 PSI, gear pumps .5-12 GPM up to 3600 PSI. Pluss many accessories configurable to produce a complete system. Key Features: System standards reference NFPA Stationary Industrial machinery. Low Profile horizontal style reservoir assembly: Sizes are 10 gallons to 30 gallons Continental wide variety of hydraulic pumps: Sizes are .5 to 12 GPM up to 3600 PSI Continental wide variety of hydraulic valving: Sizes are D03, on off and proportional Assemblers are CFPS over 20 years’ experience each Multitude of fluid power accessories: Examples are; Gauges, ball valves, check valves, pressure and temperature switches, filters, heat exchangers, tank heaters, etc. SAE ports, flange ports, hydraulic tubing and hose with 37Degree tube fittings. Robust and quiet Motor controls and panels Epoxy painting Documented and Tested 100% 18-month warranty
