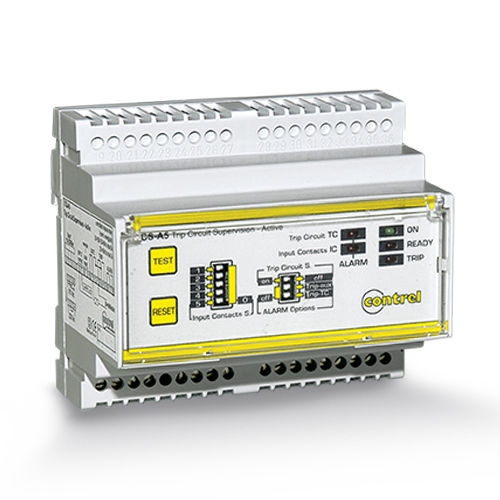

Trip circuit monitoring relay TCS-A5

ACDCDIN rail

TCS-A5 Permanent control with actuator of the safety circuit Actuator for safety circuit as required by CEI 64/8 Introduction Range TCS Product name TCS-A5 Product type Device for permanent control of safety circuits with actuator for opening the emergency circuit Technical characteristics Control network voltage 110...240 VAC/DC 20...60 VAC/DC (optional) Supply voltage 110...240 VAC 110 VDC (optional) 24...48 VAC/DC (optional) Power on delay 150 ms Power consumption 5 VA (max) TRIP output activation delay 150 ms TRIP output pulse due to power failure 100 ms Test function Local Reset function Local Remote Output relays 2 changeovers (TRIP+SAFE, ALARM) 5 A (240 VAC) 0,3 A (110 VDC) 2 A (48 VDC) Display indications LED green(power ON) LED red TRIP (Relay intervention) LED red ALARM (output circuit fault) LED red ALARM (input contact circuit fault) LED red READY (device ready for output activation) Microswitches Setting of the number of controlled input contacts also for short circuit with resistors Setting of operating modes in alarm conditions and "trip circuit" activation / deactivation Mounting mode DIN rail 6 modules Standards EN 61010-1 EN 61551-1 EN 61326-1 EN 61326-2-4 CEI 64-8/464.1 64-8/465.5 64-8/537.4.3 Weight 500g Environment IP degree of protection IP40 on front IP20 terminals Relative humidity 5...95% Operating temperature -10...+60 °C Storage temperature -20...+70 °C Options Espansione circuiti sottocontrollo TCS-R6 device Modelli disponibili Supply voltage: 110...230 VAC | Vc: 100...240 VAC/DC Supply voltage: 24...48 VAC/DC | Vc: 20...60 VAC/DC Supply voltage: 110...230 VCA | Vc: 20...60 VCAC/DC Supply voltage: 24...48 VAC/DC | Vc: 100...240 VAC/DC
