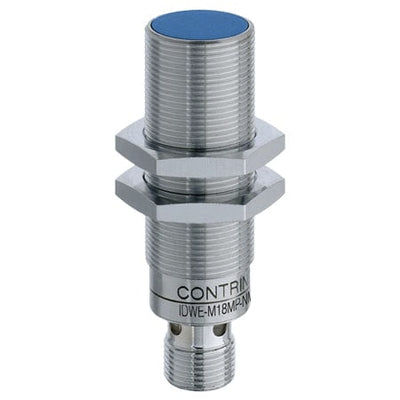

Inductive proximity sensor IDWE-M18MP-NMS-A0cylindricalM18IO-Link
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- IO-Link
- Electrical connection
- M12 connector, 4-pole
- Supply voltage
- 24 Vdc
- Material
- brass
- Protection level
- IP67
- Length
64 mm
(2.52 in)- Measuring range
Max.: 10 mm
(0.39 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Switching frequency max. - 125 Hz
Polarity - PNP
Output - OSS1/IO-Link + OSS2/INPUT
Repeatability - < 0.006 mm
Housing material - Chrome-plated brass
Resolution - 4 µm
Mounting - Quasi-embeddable
Interface - IO-Link
