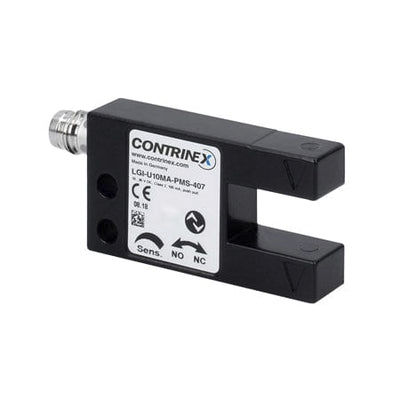

Through-beam photoelectric sensor LGI-U10MA-PMS-407LEDinfraredIP67
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Type of beam
- LED, infrared
- Other characteristics
- IP67
- Maximum range
Min.: 0 mm
(0 in)Max.: 10 mm
(0.4 in)
Description
Switching frequency max. - 10000 Hz
Polarity - PUSH-PULL
Output - Light-on/Dark-on/IO-Link
Sensitivity adjustment - 18-turn pot.
Connection - M8 3-pin
Housing size [mm] - U 10
Housing material - Die-cast zinc
Resolution - 0.2 mm
Light source - LED, infrared 880 nm
Interface - IO-Link
Operating principle - Through-beam
Catalogs
No catalogs are available for this product.
