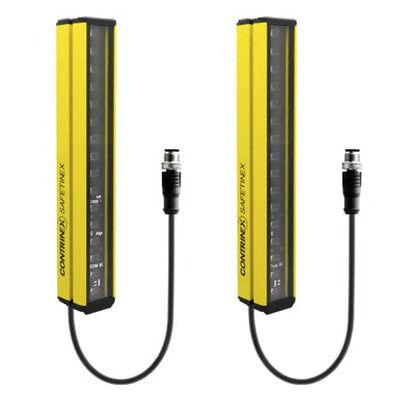

Safety light curtain YBES-14K4-0170-P012multibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.4 m
(1'03" )Max.: 5 m
(16'04" )
Description
Operating range - 0.4...5 m
Sender wavelength - IR 850 nm
Protective height - 170 mm
Supply voltage - 24
Polarity - PNP
Safety Level - Cat. 4, PL e, Type 4, SIL 3
Connection - PUR, 0.3 m, 5 / 8 wire + M12 5-pin
Housing size [mm] - 26 x 26 (slim)
Enclosure rating - IP 65
Safety Type - Kit
Response time - 9.6 ms
Resolution - 14 mm (finger)
Temperature range - 0...+55°C
Sensor Height - 170 mm
Product Range - Light curtain extended slim
Beam gap - 10 mm
