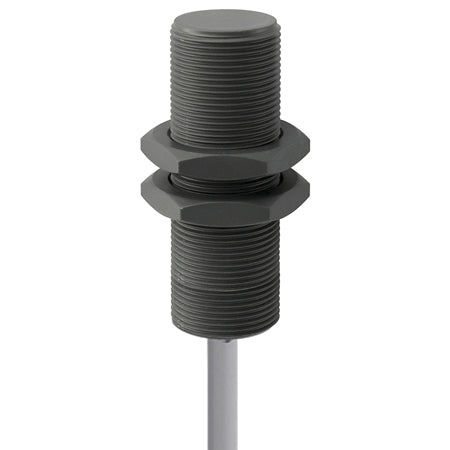

Inductive proximity sensor DW-AV-701-M18-693
cylindricalM18M12

inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
inductive
Shape
cylindrical
Diameter
M12, M18
Output signal
NPN
Supply voltage
24 Vdc, 12 Vdc, 15VDC
Material
stainless steel
Protection level
standard, IP68, IP69K
Other characteristics
3-wire
Length

50 mm
(1.97 in)

Measuring range

10 mm
(0.39 in)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

Switching frequency max. - 15 Hz Operating pressure [bar] - ≤ 60 bar Output - Normally Open (NO) Mounting - Embeddable Interface - Standard output

Catalogs

No catalogs are available for this product.

See all of CONTRINEX‘s catalogs

Other CONTRINEX products

Weld-Immune
