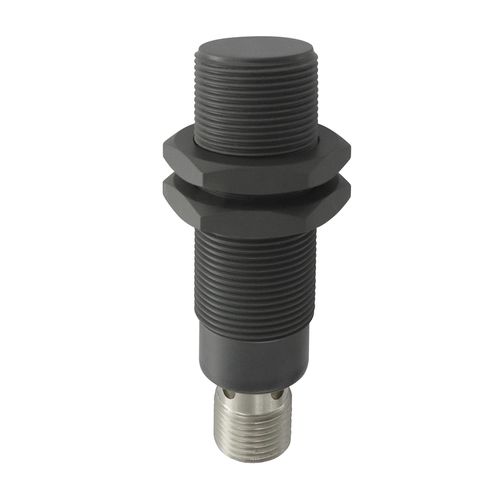

Inductive proximity sensor DW-AS-703-M18-693cylindricalM18M12
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12, M18
- Output signal
- PNP, IO-Link
- Supply voltage
- 12 Vdc, 15VDC, 8VDC
- Material
- stainless steel
- Protection level
- IP68, IP69K
- Other characteristics
- 3-wire
- Length
63.5 mm
(2.5 in)- Measuring range
10 mm
(0.39 in)- Process temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
Switching frequency max. - 15 Hz
Operating pressure [bar] - ≤ 60 bar
Output - Normally Open (NO)
Mounting - Embeddable
