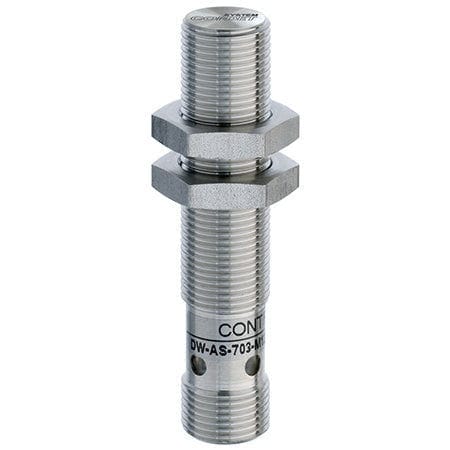

Inductive proximity sensor DW-AS-701-M12-673cylindricalM12NPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- NPN
- Supply voltage
- 24 Vdc, 12 Vdc, 15VDC
- Material
- stainless steel
- Protection level
- standard, IP68, IP69K
- Other characteristics
- 3-wire
- Length
60 mm
(2.36 in)- Measuring range
6 mm
(0.24 in)- Process temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
Switching frequency max. - 15 Hz
Operating pressure [bar] - ≤ 80 bar
Output - Normally Open (NO)
Mounting - Embeddable
Interface - Standard output
