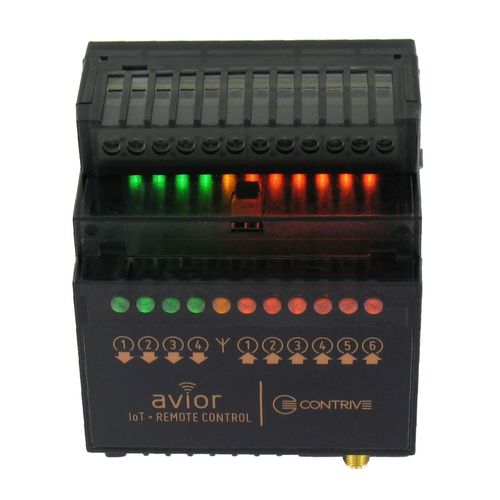

DIN rail programmable controller Avior

analog inputsdigital inputrelay outputs

Avior is an industrial DIN rail unit for supervision and control through WiFi and cellular networks. Avior can work both as a passive remote controller managed by remote commands (CLOUD) or as a programmable controller deploying actions in response of events (EDGE). Avior has plenty of input, output and communication CHANNELS, each of them can be enabled or disabled and can trigger events: • Six digital inputs including pulse counter and time counter features • Four software configurable analog inputs • Four dry contact relay outputs • Wiegand interface • Infrared transmitter and receiver • Com port (command and transparent mode) • Local and remote expandability • Dual power supply with monitoring and working time counter • Backup battery with monitoring and working time counter • Filesystem and SDcard interface up to 32 GB • Upgrade over the air (command) Avior can receive commands and send emails, chat messages, HTTP requests. All units provide WiFi and Bluetooth communication. Additional features available for units equipped with cellular communication for 2G 3G and 4G networks: • Send and receive SMS • Send and receive phone calls • Play audio file during phone calls • Detect keyboard commands during phone calls • Provide fallback connectivity when WiFi is not available • Send and receive chat messages • Send chat voice calls (TTS) HOW IT WORKS Avior can be used as-is when it is controlled from remote (CLOUD). Avior can also work independently (EDGE) and be programmed by means of RULES (up to 500). A rule is activated by a TRIGGER EVENT associated with a channel
