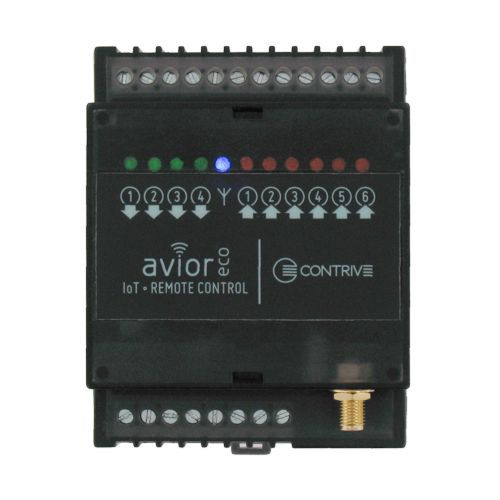

AviorEco is an industrial DIN rail unit for supervision and control through cellular networks. AviorEco can work both as a passive remote controller managed by remote commands (CLOUD) or as a programmable controller deploying actions in response of events (EDGE).
AviorEco has plenty of input, output and communication CHANNELS, each of them can be enabled or disabled and can trigger events:
• Six digital inputs including pulse counter and time counter features
• Four software configurable analog inputs
• Four dry contact relay outputs
• Wiegand interface
• Com port (command and transparent mode)
• Dual power supply with monitoring and working time counter
• Backup battery with monitoring and working time counter
• Upgrade over the air (command)
• GNSS receiver (optional)
AviorEco can can manage communications through 2G 3G 4G networks:
• Send and receive SMS
• Send and receive phone calls
• Play audio file during phone calls
• Detect keyboard commands during phone calls
• Send and receive chat messages
• Send chat voice calls (TTS)
• Make chat calls with text to speech conversion
• Publish / Subscribe MQTT
• HTTP and UDP requests
• Webhooks
• Control remote Avior and AviorEco devices
• Comprehensive set of API
HOW IT WORKS
AviorEco can be used as-is when it is controlled from remote (CLOUD).
AviorEco can also work independently (EDGE) and be programmed by means of RULES (up to 500).
A rule is activated by a TRIGGER EVENT associated with a channel (i.e.: input change, incoming email, infrared command, wiegand code, etc).
