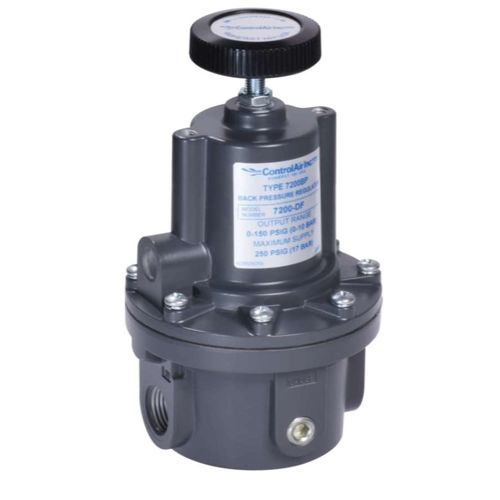

Gas pressure regulator Type 7200BP
membranesingle-stagebrass

gas pressure regulator
gas pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for gas
Technology
membrane
Number of stages
single-stage
Material
brass, aluminum, stainless steel, steel
Applications
industrial, precision, pneumatic
Pressure

17.5 bar
(253.82 psi)

Orifice diameter

Max.: 0.75 in

Min.: 0.13 in

Description

The Type 7200BP Back Pressure Regulator is a high flow, highly accurate and repeatable pneumatic relief valve with an adjustable set point. It is a normally closed valve that will remain closed until the pressure at the inlet exceeds the regulator’s set point. When pressure does exceed the regulator’s setpoint, the valve will open and vent air until the pressure decreases to below the setpoint. A typical application is to provide protection against over pressurization in the downstream portion of a pneumatic system. In an over pressurization scenario, the air flowing through the 7200BP can be vented to atmosphere or could be captured and directed to trigger an emergency shut-off valve. Features: • Large Relief Valve Allows flows up to 350 scfm. • Sensitive Reacts to pressure deviations to within 1/2″ water column pressure. • Stable Performance Isolated control chamber prevents hunting and vibration during flow conditions.
