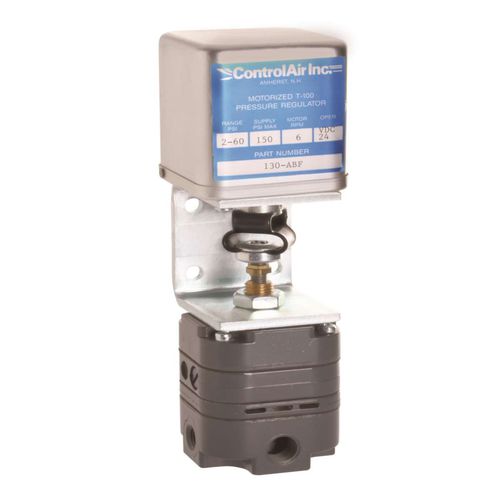

Air pressure regulator Type 100M
diaphragmsingle-stagemulti-stage

air pressure regulator
air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for air
Technology
diaphragm
Number of stages
single-stage, multi-stage
Output signal
with electrical output signal
Current type
DC
Applications
industrial, pneumatic
Other characteristics
compact, high-precision, high-precision, motorized
Orifice diameter

0.13 in, 0.25 in, 0.38 in

Temperature

Min.: -18 °C
(-0.4 °F)

Max.: 60 °C
(140 °F)

Description

The ControlAir Type 100M Motorized Air Pressure Regulator is designed to provide precise pneumatic control by use of an electrical signal. This highly accurate device is well suited for pneumatic control of a system from a remote location. The application of a DC voltage will generate a pressure change. Applying a positive signal to the black lead and a negative signal to the red lead will generate a pressure increase. Reversing this polarity will generate a pressure decrease. The motor is coupled to ControlAir’s Type 100, which is a high precision, multi-stage air pressure regulator with low power requirements. Features: Maintains Setting – maintains pressure setting in the event of a power failure. Low Power Consumption No Pre-regulation of Supply Pressure Necessary Mountable at Any Angle Adjustable Mechanical Stop Limits Maximum Output Pressure Flexible Range Options – a variety of motor voltages, pressure change rates, pressure output ranges and port sizes are available Compact Size
