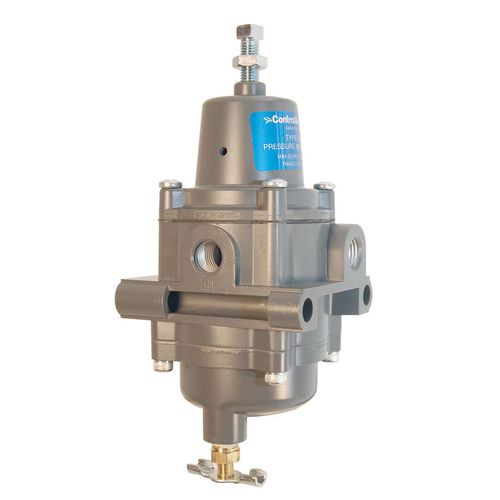

Gas pressure regulator Type 340
for airsingle-stageindustrial

gas pressure regulator
gas pressure regulator
gas pressure regulator
gas pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for gas, for air
Number of stages
single-stage
Applications
industrial
Other characteristics
compact
Pressure

Max.: 17 bar
(246.56 psi)

Min.: 0 bar
(0 psi)

Orifice diameter

0.25 in, 0.5 in

Temperature

Max.: 71 °C
(159.8 °F)

Min.: -18 °C
(-0.4 °F)

Description

The Type 340 Air Pressure Regulator is designed to provide accurate, constant control under variable flow rates and supply pressure. Compact and lightweight housing allows this unit to be mounted in applications where space is limited. Its durable construction withstands long term installation in harsh environments. This regulator is available in both ¼” and ½” port size to accommodate a wide range of flow requirements. See our Type 330 Air Filter Regulator for a built-in filter capability. Options and features (see specification tab for full list): ATEX and EAC TR-CU compliant Panel mount option available Low temperature option: down to -61°F
