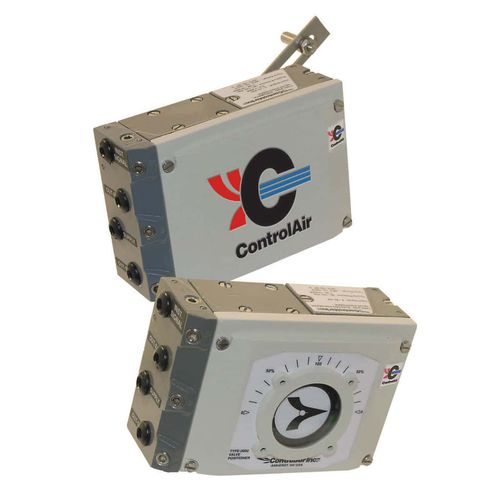

Pneumatic valve positioner Type 2000electro-pneumaticrotarylinear
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic, electro-pneumatic
- Movement
- rotary, linear
- Protection class
- IP66, ATEX
- Other characteristics
- rugged, aluminum, ATEX, explosion-proof
- Pressure
Max.: 10 bar
(145 psi)Min.: 1.5 bar
(21.8 psi)- Ambient temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)- Weight
1.6 kg, 1.7 kg, 2.2 kg
(3.53 lb, 3.75 lb, 4.85 lb)
Description
The Type-2000 Pneumatic and Electro-Pneumatic Valve Positioners are designed to provide stable and accurate control of rotary and linear valves. These force balanced devices are operated with cam characterized air pressure control utilizing a low friction spool valve to accurately drive rotary and linear pneumatic actuators. The force balanced instruments are simple, reliable and user friendly for calibration, maintenance and field upgrades.
The electro-pneumatic unit is available with worldwide safety approvals in an Intrinsically Safe and Explosion-proof version. The NEMA-4X (IP 66) housing provides rugged resistance to severe industrial environments. The modular design of the Type-2000 allows multiple feature ordering options or easy field conversions.
