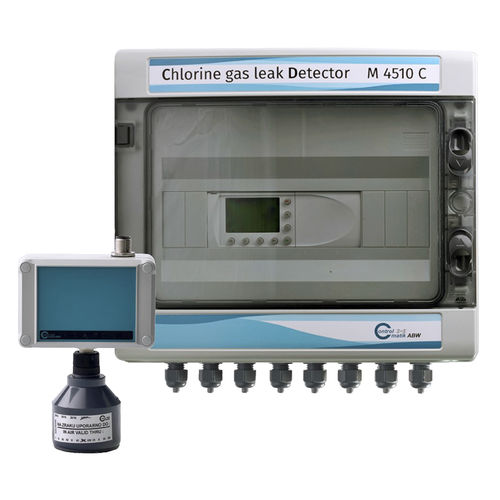

Gas detector M 4510 C

voltagepowerchlorine

Simultaneous 2 point measurement 6 relay outputs Fault indication Manual test for alarm indicators Battery backup (optional) General The M 4510 C series Controlmatik ABW detection unit is assembled as separate signal evaluation unit with display, unit with two adjustable alarms and fault alarm, power supply unit and separate detection cell – probe. The detection cell is mounted in an IP 65 housing and features 4- 20 mA output which is connected to the signal evaluation unit. Two adjustable alarms can be set and following units can be activated in case of chlorine gas leak: Alarm horn Flashing light Ventilation system Neutralisation system For detection cell, see product information for Chlorine gas detection sensor M 2103 C. TECHNICAL DATA: Measuring unit PPM Temperature range from – 10 to + 50 °C Resolution at 20 °C 0,1 PPM Repeatability 2% Measuring range 0 – 20 PPM Supply voltage 220V, 50/60Hz Fuse 1 A (T) Analogue output 2 x 4-20 mA Output voltages 0-10 V DC (on request) Current input 2 x 4 – 20 mA for sensor 1 and sensor 2
