Chain conveyor 1000 Series

monorailoverheadcurved

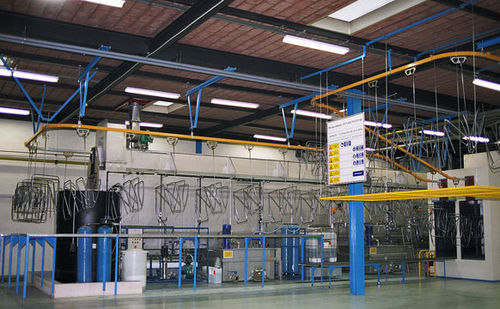

Rail section: 60mm×68mm×thickness 4mm. The conveyor chain is fitted with horizontal and vertical wheels with bearings. A stainless steel monorail can be fabricated: stainless steel rail and chain. Maximum operating temperature: 250°c. The chain includes mechanical parts and forged parts. It has a fastening point at each pitch. The overhead monorail chain conveyor can receive rotation systems for parts carried in an automatic or manual paint booth, or in a blasting machine. The rotation can be done : - either through a sprocket wheel (continuous rotation) - or by rotation blocks: 45°, 90°, etc. The chains of CONVOYNORT's monorails are designed to travel in curved rails. Coil manufacturing is made easier (here in a high temperature cooking stove) and requires no maintenance. The conveyor can be used in reversed position It can also be used as a Transfer conveyor Loading and unloading robots, manipulators, elevators, can be added to an overhead chain monorail conveyor system. Suspended tray conveyors should be disassembled from the conveyor, and/or be indexed. Here, lifting and lowering on a chain conveyor to soak parts in the TTS tanks (Surface Treatment Tunnel). CONVOYNORT conveyors, as well as all necessary equipment: - Support structures (Posts, cross beams). - Fences or safety protections for passing personnel. Are delivered and bolted together by our qualified assembler group.
