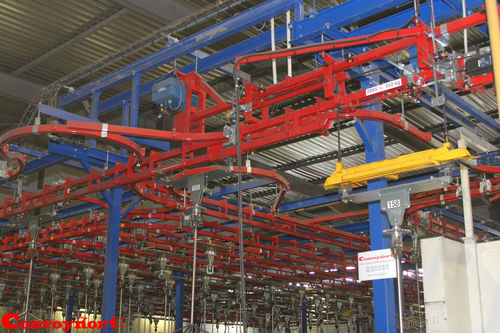

Chain conveyor 2400 Series

dual-trackoverheadtransport

The 2400 series Twin tracks system has two parallel tracks. Chain rail section: 60mm×68mm×thickness 4mm. Trolley rail section: 100mm×120mm×thickness 6mm. Chain and trolleys with rollings with steel bearings. Maximum operating temperature: 250°c. The chain and the trolleys have bearing and guiding rollings. The distinctive feature of CONVOYNORT's twin track conveyors is their easy driving and accumulation mode. Description Twin tracks 2400 series is a motorized handling system for heavy loads. It is made of parallel rails including one for the chain and the second for trolleys which carry the loads. The chain which receives the overriding dogs may be located indifferently to the right or left of trolley track.The juxtaposition of both tracks has a great advantage about the low height of the system. Twin tracks conveyors from CONVOYNORT have for main characteristic the high simplicity of drive and accumulation processes. Specifications Trolleys rail section height 120mm x width 100mm x thickness 6mm Chain rail section height 68mm x width 60mm x thickness 4mm The cardan chain of the twin tracks 2400 series is identical to the chain used on monorail 1000 series. The chain is fitted with horizontal and vertical bearings, mechanical parts and forged parts. Trolleys are fitted with horizontal and vertical bearings and/or side guides. Curves or bends of twin tracks conveyor are arched sections. They require no idler wheel, no carrier or rotation guide, which eases the maintenance. Accumulation and drive principle are very simple. The retraction of the overriding dogs of the conveyor chain does not require any spring, clutch or tie rod.
