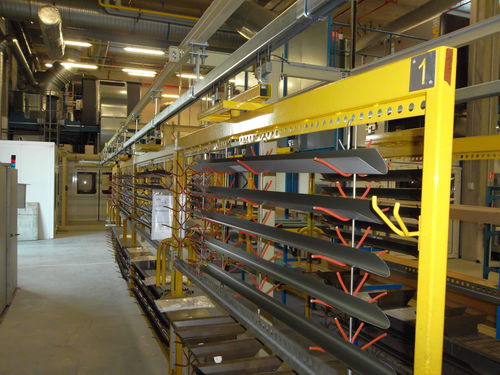

Monorail conveyor 500 series

overheadhorizontalfor materials handling

the 500 series manual conveyor Rail section: 60mm×68mm×thickness 4mm. Trolleys with steel bearing rollers. Maximum operating temperature: 250°c. The 500 series manual monorail can be motorised on some sections (including switches) thanks to a side motor. For longer motorised sections, it can also receive a trolley drive chain Components of 500 series manual monorail Track Curve Switch TurntableMotorization Motorized trolley Retractable track Drop section Specific equipment can be made on request. For example : integration of special lifting systems, weighing, load bars for transported parts etc. Turning switch plate. To make operator movements easier, the turning section of the switch can be controlled automatically with a cylinder. Switch motorisation on a manual conveyor. The manual conveyor can be motorised in some areas. Here on 2 parallel tracks with a side motor switch to jog the load bars forward. The retractable track may be a conveying solution through an airtight door. The retractable track is a simple answer for continuity of the handling circuit through an airtight door, a curtain door or a fire door. All doors which require a tight closing between two areas or premises. But also have to let work pieces to travel through being conveyed by an overhead conveyor. Picture: 3 combined retractable rails closed and open, located at the front door of a high temperature curing oven. Upward and downward elevators are used for level changes, and make loading and unloading easier. The drop section is fitted with a pneumatic or electric hoist. For light loads, lifting device can receive a pneumatic cylinder, in some cases.
