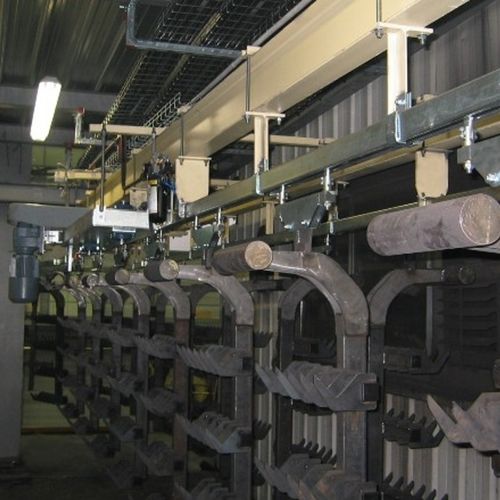

Chain conveyor 1200 Series

pneumaticmonorailoverhead

Rail section: 40mm×40mm×thickness 3mm. The conveyor chain is fitted with horizontal and vertical wheels with bearings. Chain pitch: 180mm. The chain is made up of mechanical parts and forged parts. Regularly fitted each 180 mm, forged parts of chain have the role of receiving the transported loads. They are as many possibilities of hanging on workpieces at conveyor chain. A lot of possibilities of hanging on conveyor chain make profitable the use of a CONVOYNORT's monorail chain conveyor. Maximum operating temperature: 250°c. The 1200 series chain is the one used for the 2700 series power and free. For continuous and variable rotations of workpieces; a side motorization driven by a pneumatic motor will make the loads rotate on themselves when beeing conveyed. Speed varation is adjustable by the air control of the pneumatic motor inside the ATEX area of paint booth. Used as a jog suspended tray conveyor. Loads can be hooked through a cross beam between two chain pitches. Intended for small loads, it can also be easily used as a cardboard box conveyor. The conveyor can be used in reversed position It can also be used as a transfers conveyor Description The overhead monorail chain conveyor 1200 series is a motorized handling system by track and chain for ligth loads. Loads are carried by the conveyor chain. The chain speed can be continuous with speed variation or step by step. The overhead conveyor chain is characterized by its easy adaptation to sinuous routings. Works of loading and unloading of transported parts by the aerial conveyor may be realized automatically, for example by industrial robots.
