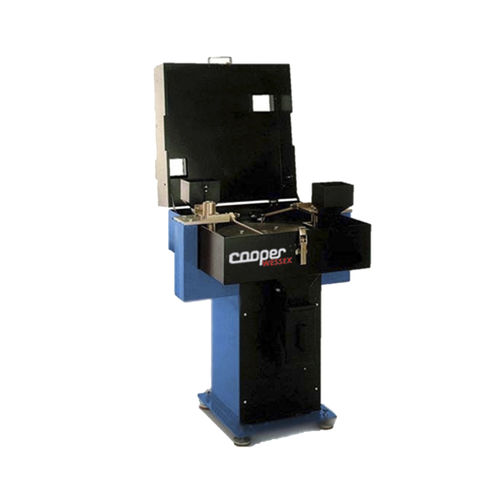

Aggregate abrasion tester CRT-AAM

The Cooper Wessex Aggregate Abrasion machine CRT-AAM determines the Aggregate Abrasion Value (AAV) by measuring the resistance of aggregate to surface wear by abrasion Inadequate abrasion resistance of road surfacing aggregates means an early loss of the texture depth required to maintain high speed skidding resistance. The Cooper-Wessex Aggregate Abrasion machine determines the Aggregate Abrasion Value by testing the measure of the resistance of aggregate to surface wear by abrasion. Two specimens are pressed against the surface of a steel disc rotating in a horizontal plane, with a force of 0.365 Newtons per sq. centimetre. Sand, fed by hoppers, is used as an abrasive. After 500 disc revolutions the amount of material abraded is measured by calculation of the weight loss of the aggregate. The percentage loss in mass of chippings as known as the Aggregate Abrasion Value (AAV), and ranges from about 1 for hard flints to over 16 for aggregates normally considered too soft for use in road surfacing. Key Features CE approved Heavy duty mainframe on adjustable anti vibration pads Steel lap wheel 610 mm diameter Precision machined steel shaft and sealed bearings. Inverter drive to 3 Phase motor for precise speed control Totally enclosed, grease filled gear box Scraper blades for sand removal Predetermined revolution counter 24 V DC control circuits for safety Interlocked cabinet lid for safety Sand Scoop to collect spendrift
